Precautions for the use of

fast drying ink cartridges

1.Install the ink cartridges,remove the ink cartridges,you must first turn off the printer power

2.If the printer is not used for more than 20 minutes,the ink cartridge must be removed from the printer,and the card should be used to hold the card (be sure to save the clip)

3.Hewlett-Packard's data requirements,after the ink cartridge is opened,it is best to use within 3 months.

4.Because the ink cartridge is a quick-drying nature,so the use of a little drawing,lack of line phenomenon,are all normal.

5.if there is drawing,lack of line phenomenon.

Method 1:You can use a special cleaning liquid spray on a soft paper towel, wipe the nozzle in one direction

Method 2:In the Print Settings menu,change the nozzle to another nozzle and restart printing.

6.If it is fast-drying white ink,shake it for 5-10 minutes before use.Otherwise,the color will be lighter.

Handheld jet printer Positive

1. The handle (inside the battery) 2. Ink jet printing switch

3. Auxiliary wheel 4,Nozzle slot 5. Edit function area

6. Display area 7. All aluminum fuselage

Handheld jet printer other side

8. Ink Penholder 9. Power switch 10. 232 serial port

11. USB2.0 serial port 12. Charging interface

13. Synchronizer 14. Cone 15. Transmission belt

Disclaimer:

1.During the use of this product,if there is serious damage,accidental fire,water ingress,unexplained chemical corrosion,unauthorized disassembly,etc.,it is not covered by the warranty.

2.If the printer has malfunctioned,please back up the information in time to prevent loss before repairs.

Technical parameter

This parameter is subject to change without notice

Main menu

New editing text

Click the text to enter the picture above.You can edit

English, Chinese, numbers, symbols, etc.

Font :The font can be chosen freely

Height:Select different numbers to change the vertical height of the font. The greater the value, the higher the height.

Width :Select different values and change the width of the font.The

larger the value, the wider the width

Gap :The distance between 2 characters

Bold :bold or normal Dir :Angle of rotation 0 90 180 270

Vary :3 kinds of display effects Bind :Edit variable character

Touch one:The height of the print character is 12.7mm (0.5 inch)

Touch two:The height of the print character is 25.4mm (1.0 inch)

Keyboard

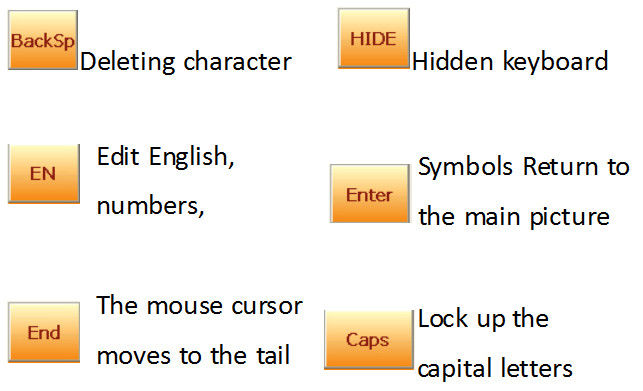

Edit text:Click the keyboard to pop up the keyboard

interface,than you can edit the contents what you want to print.

Insertion time and date

Font :The font can be chosen freely

Height:Select different numbers to change the vertical height of the font.The greater the value, the higher the height.

Width :Select different values and change the width of the font.The larger the value, the wider the width

Format:If you need to insert the whole time variable forma(yyyy-mm-dd hh:mm:ss)please choose a monospaced font.Black is a monospaced font

Bold :bold or normal

Gap :The distance between 2 characters

Insert Counter

Insert Logo

You can find the logo that has been stored in the printer by the drop-down key.

Find logo : Importing LOGO from the U disk.

Del : Delete the LOGO that has been imported

It must be the BMP format.

QR

Be careful:

1. T1 machines do not support variable two-dimensional code functions at present

2. Two dimensional code data bar, data can not be blank

3. It is not too large to use U disk memory, suggesting 8G capacity

Insert Barcode

Type :Selectable bar code type(such as code39,code128,UFC-A,QR)

Data :Use a keyboard to enter digital or English

Narrow :Narrow strip width,You can choose 1-8

Ratio :Narrow strip length,You can choose 2 or 3

Checksum:Check code,You can choose to yes or no

Human read:You can choose 0,1 or 2

Hight :Jet printing height,such as 16,24,32,40 etc.

Dir :Jet printing direction,you can choose 0°,90°,180°,270°.

Spray Settings

Delay :After the spray is triggered, the printing is extended for a period of time.Speed of printing:It is effective only when the width of the sync word is 0.The bigger the value, the faster the speed is.(Dedicated online machine.The maximum is 240Encoder :The greater the value, the wider the information.Handheld code machines usually use‘1-4’.An online printer can only

use '0'

NOZZLE :Nozzle selection.Left Nozzle,Right Nozzle,Double nozzles

(No nozzle selection function of T2 machine)

Mul.times:The number of times that can be triggered.

Interval :Distance between continuous printing information

Move Dir :The relative position of the left and right nozzles(Only in double nozzles only)

Piece :NO→One-off spray printing of all information segments

YES→Print separate information segments in turn

(It can be divided into 5 segments at most)

INK TYPE :Users must select the voltage according to the actual cartridge type.(The voltage value of the ink box of the T2jet printer rises by 0.5V)

Density :pulse width.The suggestion is not to be modified.

Reset Total:Reset total number.It is necessary to reboot the printing information to be effective

Settings/counter

Digit :Counting digits

Direction :plus count,Less count

Initial value :Counting start value

End value :End of count

Step number :Count the changing step size

Repetitions :Number of repetitions of the same Number

Cycle times :Number of valid cycles for counting values(0 is infinite loop)

Prefix :Yes(E.g0001,0002,0003)

No(E.g1,2,3)

Settings/ System Settings

Variable length :Character length when text is bound as a variable(0-100 digit)

Flash spray mode:No (No flash) Yes (Flash flash)

Flash Columns :Flash Columns

Flash Interval :Pause time between flashes

Language selection:selected, English interface

Valid days :Calculated as of this date

Time setting :date and time setting of the printer system

Screen Calibration:Touch Screen Position Calibration

Reset : Clear the message name and picture with a button

Cleaning :Forcing the nozzle to eject ink (must be placed in front of the cartridge)Click again to stop cleaning

Print Control Update:Resetting the Print Control Board Procedure (contact factory for instructions)

Maintenance :enter this mode, the mainboard program upgrade (need to contact the manufacturer to guide operation)

Settings/ U disk variable data

U-disk refresh:

Refresh U disk data

Spray from the first few:

Select starting print data entry

Database variable settings

1,Functional description

Print the specified TXT files in the U disk by line

2, Method

1.file preparation,in the U disk's root directory,create a new "data.txt" text file,(must be data file name),and meet the following requirements:printing data in units of behavior,each line must be the same length,The file ends with "$$".

As shown in the picture

2.Plug in the U disk,click on the settings,enter the "U disk variable data" menu, point U disk refresh,the system displays the total number of lines of the file and the number of characters per line,press the OK key,and data.txt file Import the system,and you can unplug the U disk.

3.Click on the text to insert,click on the keyboard,enter a number,such as the number 1,at the same time select the font,height,width and other parameters,(Note:Be sure to bind before the variable tick)

After setting other printing parameters,you can start printing

If there is something unclear,please contact our sales or service engineer

Printer packing list

Note:Inline inkjet printers recommend standing stand

Note:“★”To be standard,“〇”Pay for

Precautions:

1.If there is any abnormality in the printer,please contact the maintenance engineer or call the service hotline for the first time.

2.Untrained personnel are strictly prohibited from operating the printer.

3.It is strictly forbidden to disassemble the printer without permission from the manufacturer's staff.

4.Inkjet printer operators must carefully read the instructions, and then on the machine operation.
